معلومات تفصيلية |
|||
| سطح: | المغلفة، الفراغات غير الأرض | مصدر الطاقة: | كهربائي |
|---|---|---|---|
| نوع المحرك: | كهربائي | TRS: | 2400-2900 |
| HRA: | 83.5-88.5 | مادة: | 100 ٪ كربيد التنغستن البكر |
| كثافة الصف: | 13.5-14.4 جم/سم3 | الصف TRS: | 2400-3100 ميجابيكسلα |
| صلابة الصف: | 82.5-88.5 ساعة | القطر (د): | 10-100 ملم |
| القطر (د): | 2-30 ملم | الطول (لتر): | 10-60mm |
| أحجام قابلة للتخصيص: | نعم | نطاق الكثافة: | 13.1-14.4 جم/سم3 |
| مقاومة التأثير: | عالي | ||
| إبراز: | Customizable Tungsten Carbide Pellet,OEM Support Tungsten Carbide Die,Virgin Tungsten Carbide Carbide Die,OEM Support Tungsten Carbide Die,Virgin Tungsten Carbide Carbide Die |
||
منتوج وصف

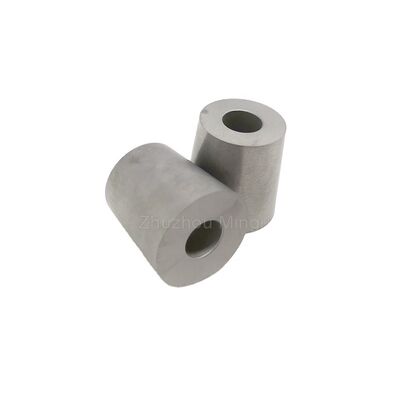

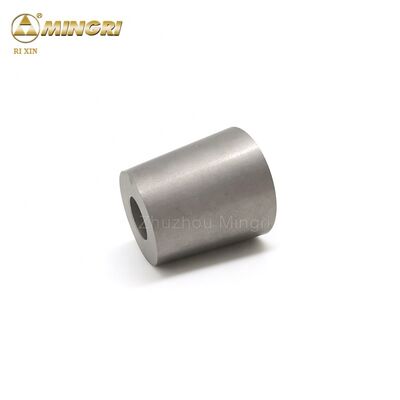

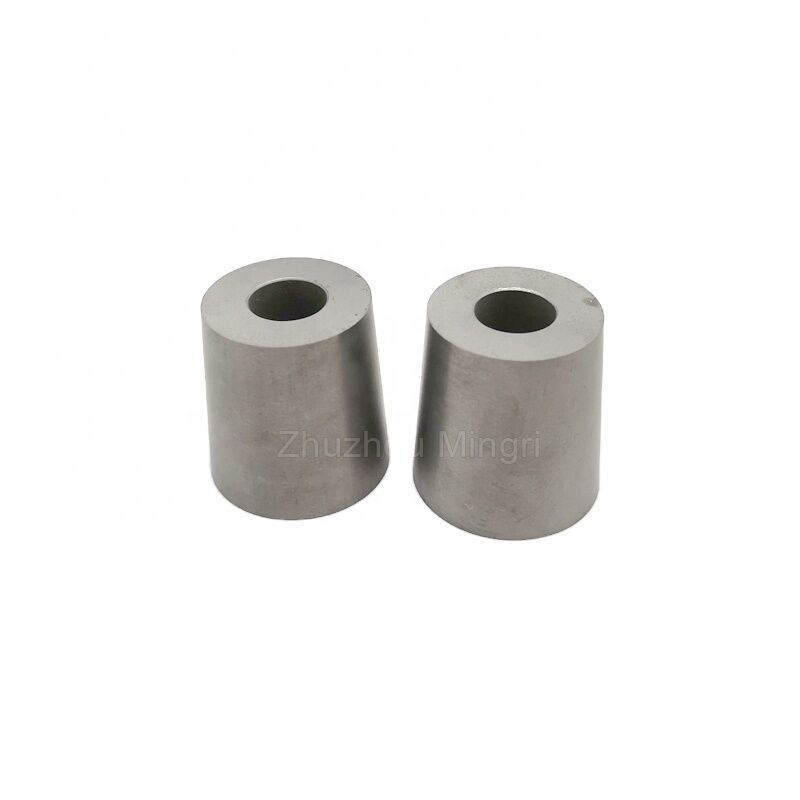

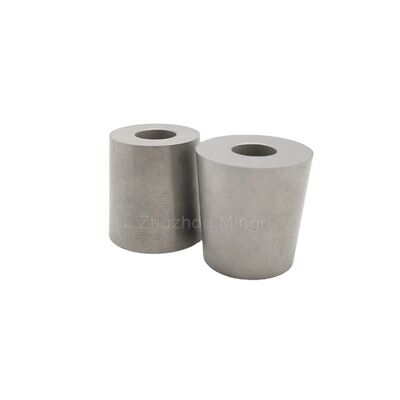

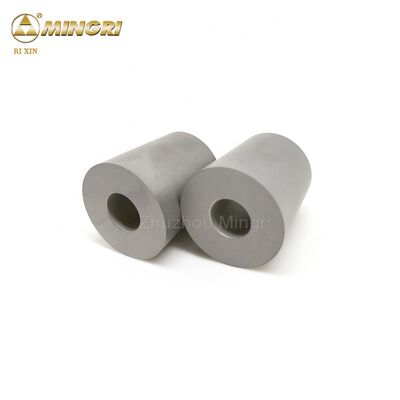

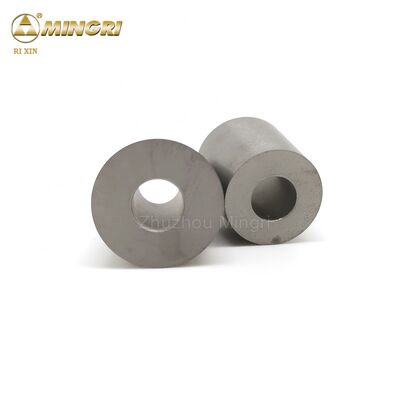

BK8|BK10|BK15|BK20 Customizable Tungsten Carbide Pellet
Professional tungsten carbide die blanks with OEM support available for various industrial applications.
Product Specifications
Item: Tungsten carbide die
Grade: YG6, YG8, YG11, YG12, YG15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5
Sizes: Standard or customized
Brand: Rixin
Country of Origin: Zhuzhou, China
Usage: Die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die, etc.
Key Features
- Tungsten carbide die blanks are widely used for making finished die casting moulds, punch dies, wire drawing dies, machine molds, progressive dies, extrusion dies, press molds, mould parts, trimming dies, cold heading dies, forging molds, and cold forming dies
- Mingri maintains extensive stock of available moulds for various sizes of carbide dies, providing significant cost savings for customers
- Mingri offers the widest and most stable grades for carbide dies with the highest cost performance compared to Kennametal and Cbcarbide
Grade Specifications and Applications
| Grade | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Properties & Applications | Approx Grades in China |
|---|---|---|---|---|---|
| A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. Often preferred for nut forming dies and high impact-resistant dies. | -- |
| YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and non-metal powders. | YG11 |
| YM15 | 14.0 | 2500 | 87.5 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and forging tools under large stress. | YG15 |
| YM20 | 13.5 | 2800 | 85.5 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. | YG20 |
| ML32 | 13.9 | 2750 | 85.5 | Suitable for impact-resistant forging dies. | YG16C |
| ML36 | 13.7 | 2800 | 84.5 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
| ML40 | 13.5 | 2850 | 83.5 | Suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
| ML50 | 13.3 | 2900 | 83.0 | Suitable for nut forming dies and high impact-resistant dies. | YG22C ZL40.5 |
| ML60 | 13.1 | 2950 | 82.5 | Suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
| ML80 | 13.1 | 3050 | 83.4 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | YG25C GT55 |
| ML100 | 13.1 | 3100 | 84 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | GT55 plus |
Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements.
Size and Type Specifications
D: 10-100mm
d: 2-30mm
L: 10-60mm
Other sizes can be offered according to customers requirements.
Packaging and Delivery
Packing: Paper + paper boxes + exported wooden cartons or paper cases. As a manufacturer, Mingri can provide any kinds of package as buyer's requirement.
Shipping: UPS, TNT, EMS, Fedex, DHL, or as you request.
Delivery: 7-10 days after confirming all details.
Main Products
Carbide tungsten plates, tungsten carbide draw plate, tungsten carbide draw plate. We are specialized in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and all kinds of non-standard customized tool parts with high performance in the industry.
